SMD P4.7 / P6.66 / P8 /P10
Adhaiwell
8531200000
Product Description

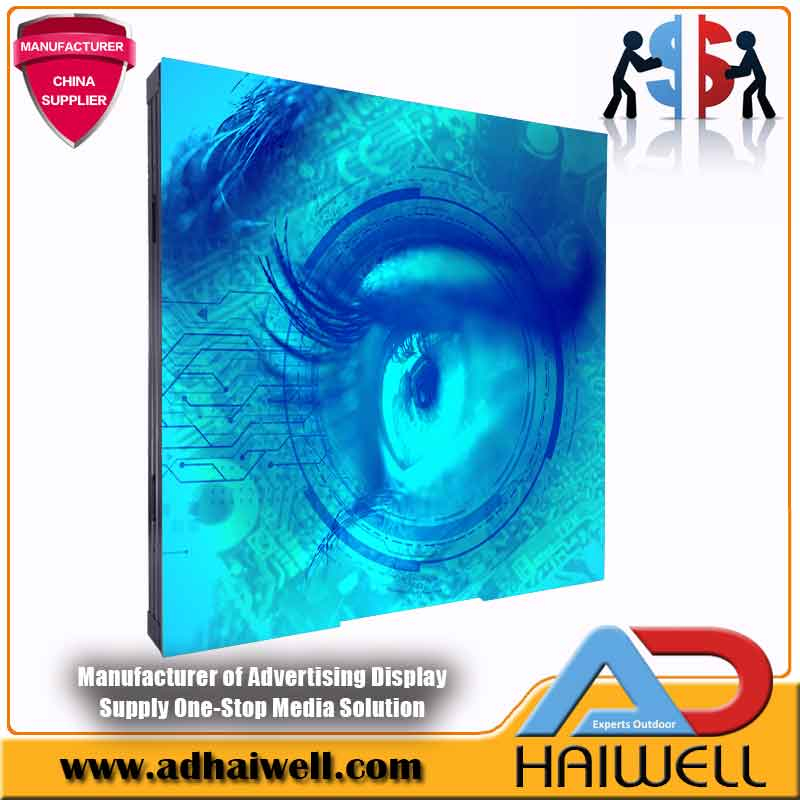

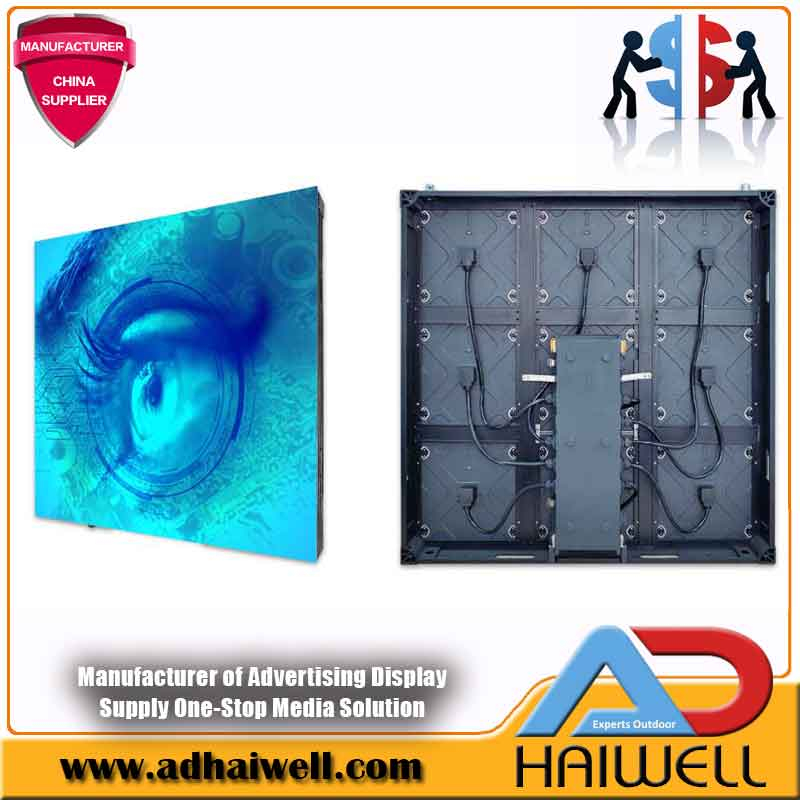

Front & Rear Maintenance LED Module LED Series is designed and manufactured by the technology of common cathode which is to reduce power consumption for LED display. Base on this technology, the energy-saving can be up to 60% at the most. Common Cathode Aluminum Cabinet LED Display is special used for outdoor front service Fixed LED Display, it has energy-saving and environmental protection, it has high brightness grade, being able to be used for business center, airport, big conference, city center and exhibition center, etc.
Pixel Pitch：P 4.7 mm / P6.66 mm / P8 mm / P10 mm
Pixels: SMD
LED Cabinet Size: 960mm x 640 mm / 960mm x 960mm
Super Energy-saving | Ultra High Brightness
High Refresh | High Contrast
Module independent water resistant
Lighter & Thinner

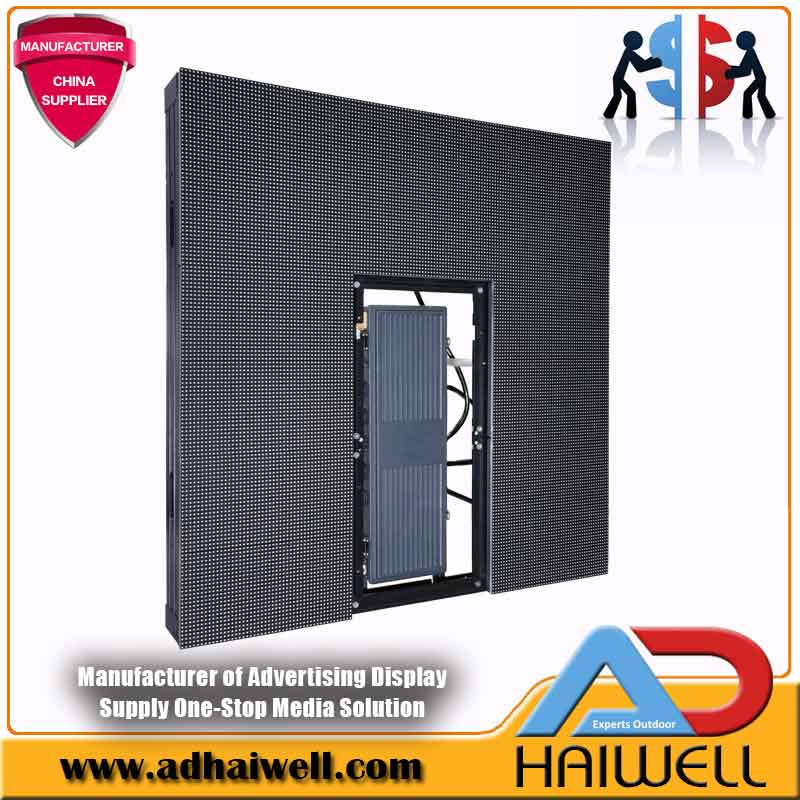

Front & Rear Maintenance
Aluminum profile cabinet
Ultrathin LED panel cabinet saves space
Half the weight of traditional products
Reducing the cost of steel structures by nearly 25%,
Adopting customized dual-voltage LED power supply, NationStar ultra-high brightness LED lamp, energy-saving IC, combined with high-efficiency energy-saving electronic architecture design, 60% energy saving than common LED Display. In addition, aluminum LED cabinet is high performance for thermal conductivity, it can dissipate heat fastly when working at high temperature condition not need aircondition.
Common cathode circuit allows ultra-low LED power consumption
Fanless design further reduces energy consumption
Compared with common LED screens, power cost is reduced by nearly 40%

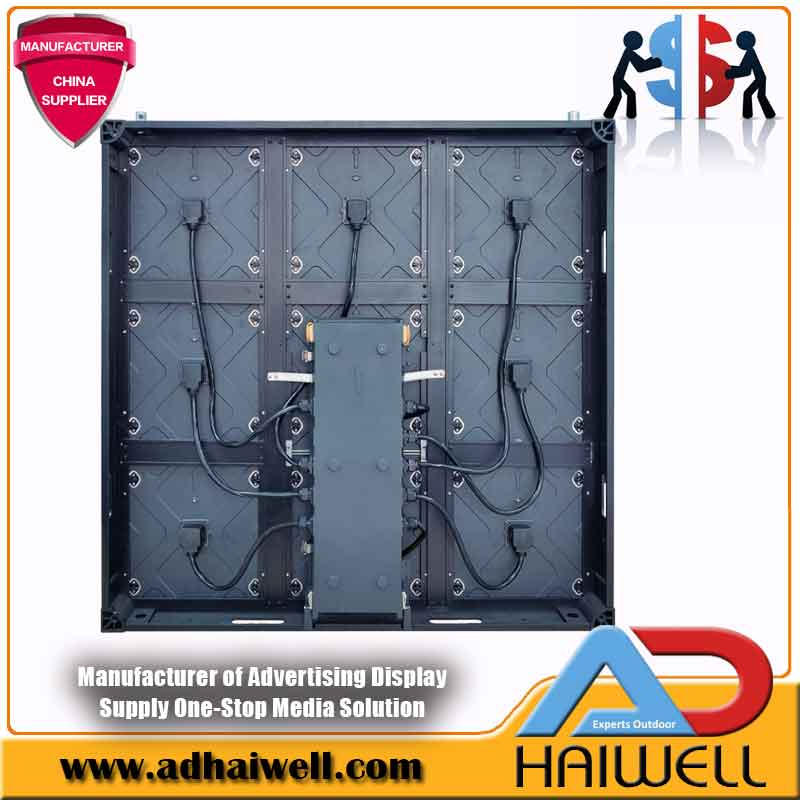

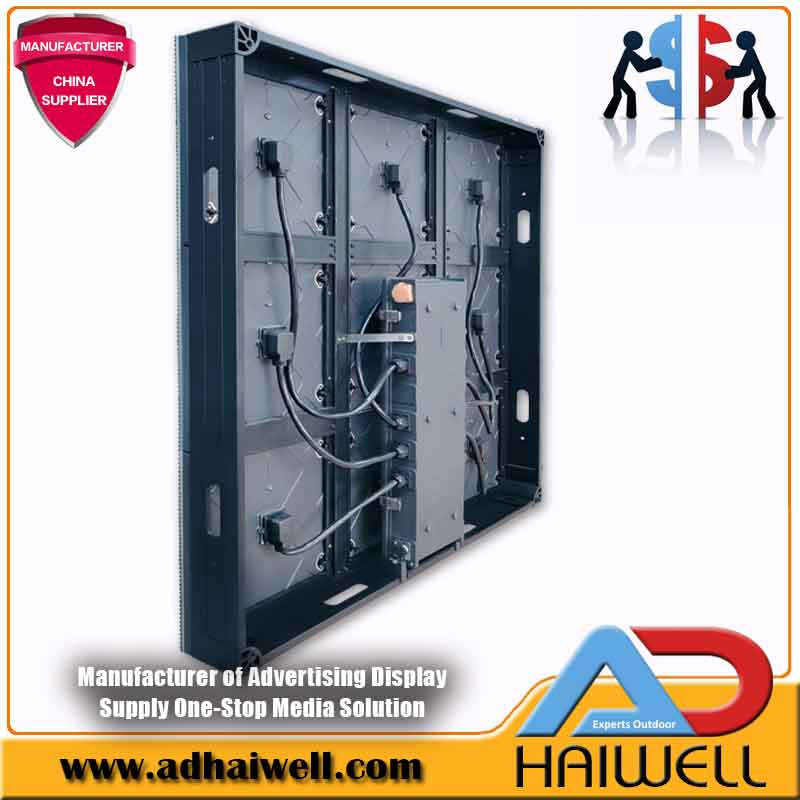

The LED cabinet is made of 6063 aluminum material, strong anti-corrosion and salt spray resistance, which ensures the structural safety of the cabinet while reducing the weight. It weighs only 29kg/㎡ and the thickness is only 102mm, saving installation and transportation costs. Wireless design for the internal structure of cabinet to improve stability.
High Definition Display to Show the Real World
3840hz Refresh rate for high dynamic range pictures
Outstanding color processing and great contrast ratios
Vivid Picture with a Wide Field of View for Outdoor Advertising Image & Video
| Product Name | SMD P4.7 | SMD P 6.66 | SMD P8 | SMD P 10 |
| Operating Environment | Outdoor | Outdoor | Outdoor | Outdoor |
| LED Encapsulation | SMD 1921 | SMD 2727 | SMD 2727 | SMD 2727 |
| Pixel Pitch (mm) | 4.7 | 6.66 | 8 | 10 |
| Module Size (mm) | 320*320 | 320*320 | 320*320 | 320*320 |
| Cabinet Size (mm) | 960*640*102/960*960*102 | 960*640*102/960*960*102 | 960*640*102/960*960*102 | 960*640*102/960*960*102 |
| Cabinet Resolution (W×H) | 68*68 | 48*48 | 40*40 | 32*32 |
| Weight (kg/module) | 18/29 | 18/29 | 18/29 | 18/29 |
| White Balance Brightness (nit) | 5500 | 6000 | 6500 | 7000 |
| Horizontal / Vertical Viewing Angle | 170/80 | 170/80 | 170/80 | 170/80 |
| Power Consumption(W/Module) | 60 | 45 | 40 | 65 |
| Refresh Rate（Hz） | ≥1920 (1920,2880,3840...) | ≥1920 (1920,2880,3840...) | ≥1920 (1920,2880,3840...) | ≥1920 (1920,2880,3840...) |
| Scan | 1/9 | 1/6 | 1/5 | 1/2 |
| Control System | Nova | Nova | Nova | Nova |
Calculate as 50sqm led screen ( Daily working time 10h，1KW = USD 0.25 cost)
Common P10mm Outdoor LED Display:
Average power consumption 0.3KW/sqm
Electricity Cost 1 year：= $0.25x 0.3(Kw/m2) x 50(sqm) x 10(hours/day) x 365(days/year) = $13,687.
Energy-saving P10mm Outdoor LED Display:
Average power consumption: 0.12KW/sqm
Electricity cost 1 year：= $0.25x 0.12(Kw/m2) x 50(sqm) x 10(hours/day) x 365(days/year)= $5,475.
Result: Saving $13,687-5,475=$8,212 annually on electricity cost for 50sqm LED Display Screen.
Usually, the Energy-saving P10mm Outdoor LED Display is USD150 per square meter more expensive than a Common LED Display.
So 50sqm Energy-saving led screen will be more expensive USD 7500. But you can save this cost after ONE year.
