Will you want something special design for your outdoor digital signage? No worries, we can build it for you. Our all-weather outdoor digital LCD signage can be well used for both, public interactive urban multimedia screens or highly visible advertising displays.
| Quantity: | |
|---|---|
Product Description

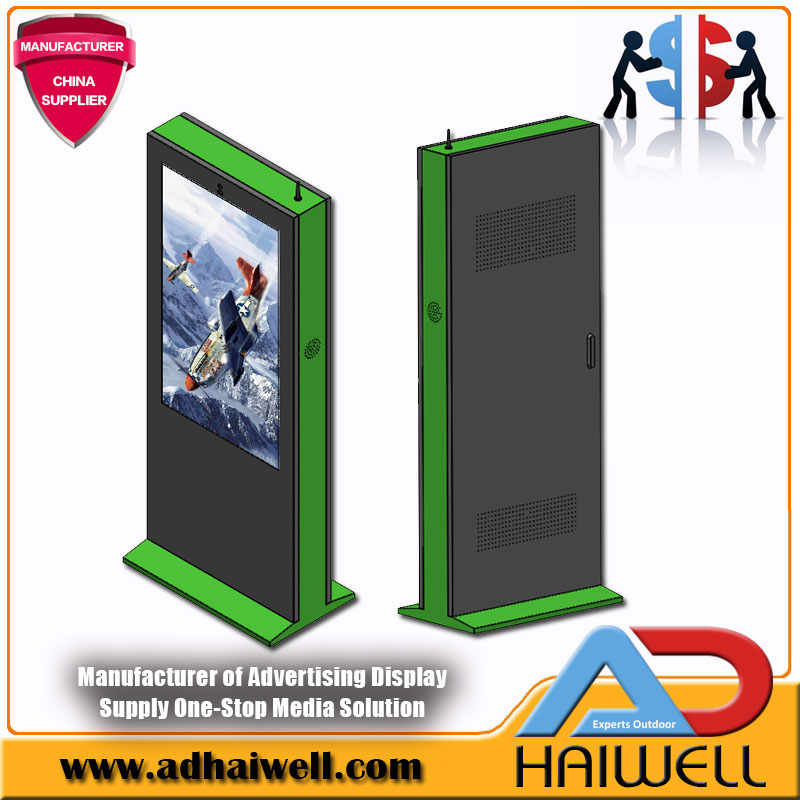

Adhaiwell is a manufacturer of Outdoor Digital Signage from China suppliers.
Anti-corrosion Design：The structure is a galvanized sheet with outdoor powder-coated and anti-corrosion for more than 7 years.
Waterproof Design: Equipment protection grade IP65 with waterproof groove and waterproof labyrinth for entering and exiting the air hole.
Dust-proof Design: Special dust-proof filter (medium-efficient dust filter) is designed for the air inlet and outlet, which filters dust in the air and prevents mosquitoes from entering the machine.
High-permeability Glass: The front panel protection glass adopts 6mm high-permeability tempered glass or AR anti-glare tempered glass, with light transmittance ≥97% and high light transmission.
Maintenance: The whole machine adopts front/rear double-opening mode, which can conveniently maintain the internal display, glass, heat-dissipating components and electronic components. The whole machine adopts modular design, which is convenient for installation and maintenance.
Anti-theft Design: The base adopts an internal lock design to prevent the screws from being moved from the outside to move the machine equipment, which is truly safe and anti-theft.
Installation and fixing: The base is designed and installed with fixing holes. It is fixed on the concrete floor with expansion screws. It can be customized according to customer requirements, and the accessories can be prepared. It can be installed by directly punching the machine.
Adopt intelligent direct ventilation (forced air cooling) cooling system, specializing in special heat dissipation design.
Self-developed intelligent temperature control system control box, which can adjust the internal air and external air of the whole machine to cycle regularly according to the internal temperature of the advertising machine. All external wind enters the filter net first, then divides the wind into front/back double air circulation. The internal temperature is guaranteed to be 5-8 degrees higher than the external temperature.
Equipped with high-temperature automatic power-off protection function. When the internal temperature of the product is abnormal due to external factors or internal reasons, and the reasonable working range is exceeded, the control system will protect the main components such as the display from power-off protection, and the fan will continue to run at full speed. Fully protect the display and main parts.
Screen size: LG / Samsung 55 "
Monitor with touching function
Orientation: Portrait
Dimensions: 890 x 2200 x 220 mm
Type: Touching LCD
Display colors: 16.7M
Resolution: 1920x1080
Brightness: 2500 cd / m²
Resolution: 1080p
Ratio: 16: 9
Contrast ratio: 5000: 1
Backlight: LED
Color: gray RAL 7040
Option Operation System: Win10,I5, 8GB & 128GB SSD / Android 5.0
All-weather resistance (IP65)
Also readable in bright sunlight
Equipped with an intelligent cooling and heating system
Anti-vandalism Protection with specially hardened safety glass
Easy service access
Weight: 150 kg
The Adhaiwell 55" outdoor LCD offers a variety of solutions for digital signage applications. Ideally, the various monitors can be used as advertising media, e.g. with indoor displays in cinemas, shop windows, shopping malls, airports or with weatherproof outdoor displays on facades, bus stops, railway stations or in places with high public traffic.
