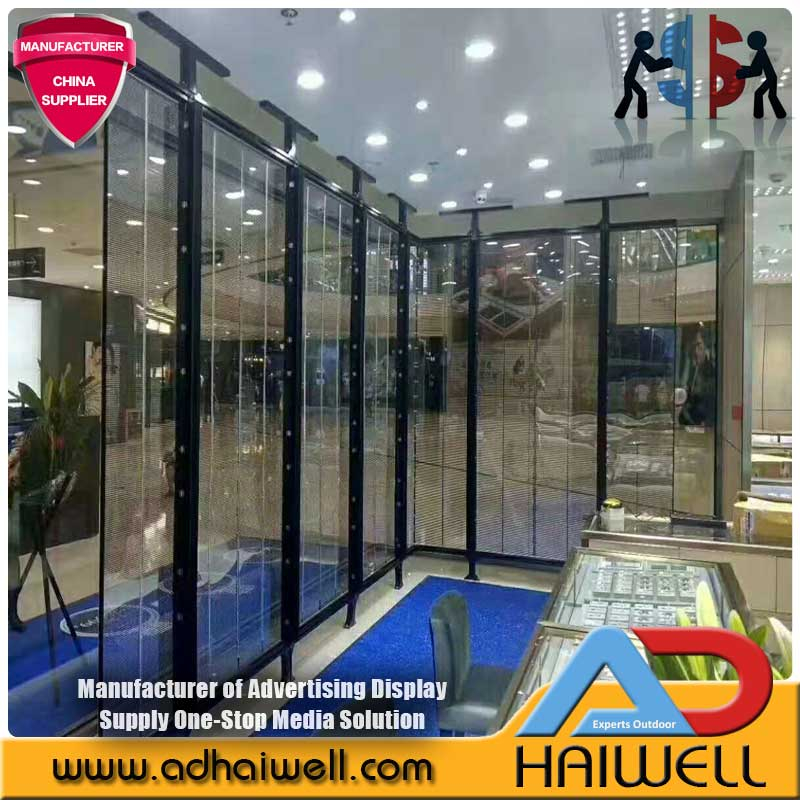

Glass curtain wall transparent led display has the practicality of led display, but also has certain aesthetics and concealment. The glass curtain wall transparent led display is a high-end building lighting product, which plays an irreplaceable role in the modern urban building lighting project.
| Quantity: | |
|---|---|
Product Description
The best choice for promo glass curtain window media led display, with a high level of transparency to provide aesthetics and good lighting in the room but still gives the image high quality results and brightness of color that looks out of space very well.
Adhaiwell Transparent LEDs Display can be mounted on the back of the glass any form of glass surface, quick installation, and easy maintenance.
Glass curtain wall transparent led display has the practicality of led display, but also has certain aesthetics and concealment. The glass curtain wall transparent led display is a high-end building lighting product, which plays an irreplaceable role in the modern urban building lighting project.
Today with the transparent Glass LED all the limitations are removed and can be easily fitted to existing buildings or new planned construction.
Special for the high-level Glass curtain wall transparent LED display field.
Beautiful shape, Lightweight, transparent and quick installation are its most important features.

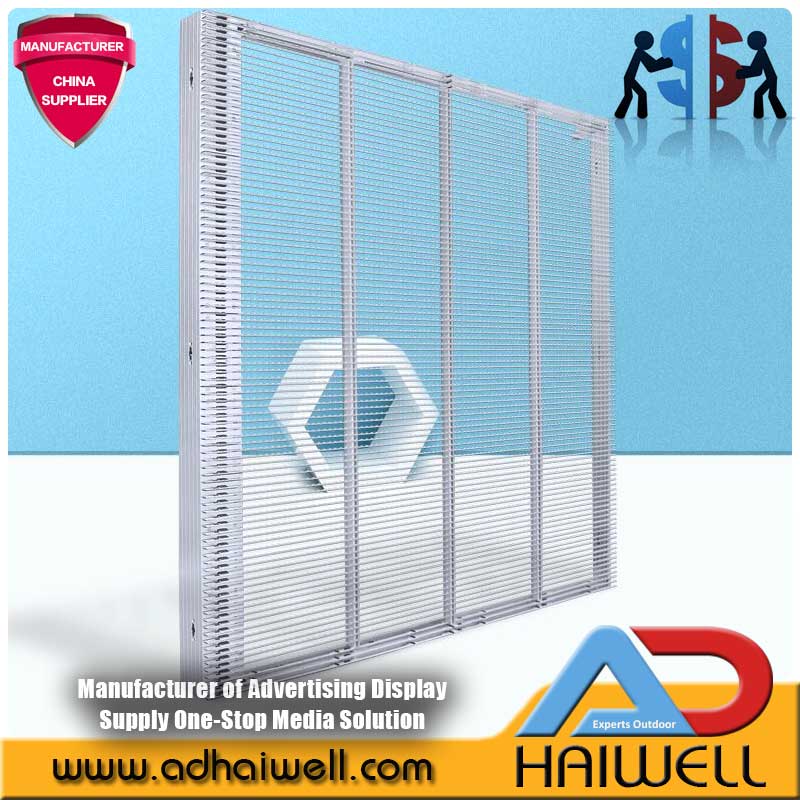

Standard Cabinet
Thin and light;
Standard cabinet dimension:500*1000mm / 100*100mm;
Thickness: 50mm
High Transparency

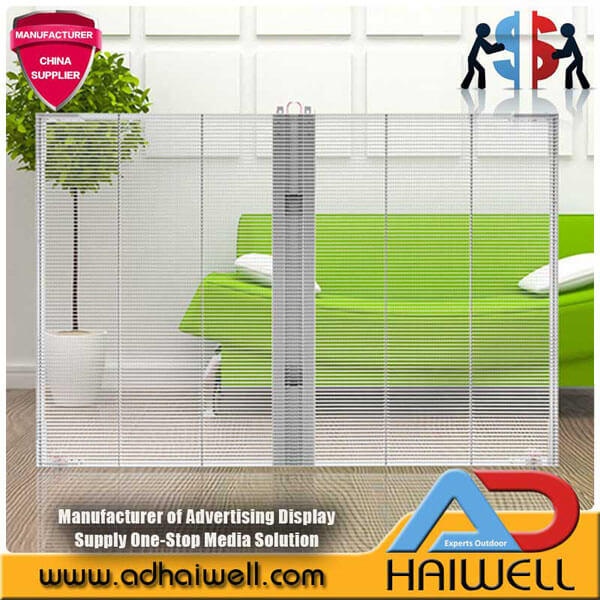

Adhaiwell series is based on LED side-lighting technology,
its 70% high transparency,
and some types can reach 90% above.
Seamless
Seamless jointing facade and window lighting structures restore the lighting and view of the glass wall with transparency. There is no need to change the building structure and it could be directly fixed on the glass wall because of its low weight and less space occupied. Advertising effect and artistic effect are more attractive when the advertisement is shown on the glass wall.
TRANSPARENT LED CABINET SPECIFICATIONS
Parameter | Value | |
Pixel Pitch(mm) | 3.9 x 7.8 | |
Pixel Density(dot/m²) | 32768 | |
The overall size(mm) | 745X1175X37 | |
Screen/Module Display Size(mm) | 500 X 1000 /1000x1000 | |
Screen/Module Resolution(dot) | 178 X 128 | |
LED Type | SMD 3in1 | |
Brightness(cd/m²) | 5500 | |
Transparency | 85% | |
Viewing Angle | 160° | |
Grey Level | 14bits | |
Scan Mode | 1/4 | |
Refresh Rate(Hz) | 3840 | |
Frame Frequency(Hz) | 60 | |
Avg. Power Consumption(W/m²) | 300 | |
Max. Power Consumption(W/m²) | 1000 | |
Maintenance | Back | |
IP | IP42 | |
Working Temp. | - 20~50℃ | |
Weight(kg/m²) | 24 |
Integrated Structure Design
Customized Size
The LED strip length and Cabinet frame is overlapped with glass frame perfectly, no cabinet frame can be seen. It can be customized according to glass wall’s structure, to match with the building glass perfectly.
The LED cabinet size is customized according to glass wall structure. Plenty of structure designs and frames are provided for you to satisfy your aesthetic demand and theme style.
It is widely applied in building glass, shop windows, etc.
Fast Installation & Easy Maintenance
Light structure design, can be hung by steel ropes;
Fast lock for cabinet connection,
Individual strip design with hot plug.
This transparent LED display is a perfect solution for any shaped media display/ advertisement board.
Only 10s for single people to assemble and without any other tools.
Application

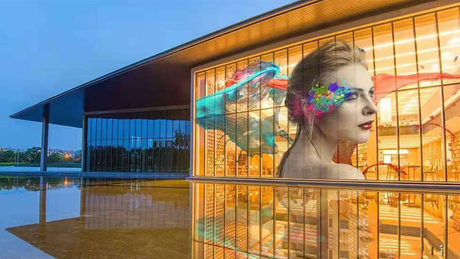

Glass curtain wall transparent led display is generally installed in commercial buildings, shopping centers, banks, shopping malls, commercial streets, chain stores, hotels, municipal public buildings, landmark buildings and other scenes.
Latest LED Display Media Solution
With the Transparent Glass LED panels it is now possible to attach LED panels directly to the glass by way of the innovative mounting technique. The options of gluing, hanging, mounting all help to overcome a variety of location issues particular to each project. In addition is can be designed to install onto the vertical window frame.
The brand-new design and installation scheme are launched to accomplish the highest brightness, lowest weight and easiest installation characteristics. Contact us to learn more about our transparent screen system.
