Football & Soccer Courts Perimeter LED Banner Display

Sports field LED screens are very suitable for crowded places, especially for football or basketball courts. Its high-resolution images and wide viewing angles ensure the best quality pictures and videos to every corner of the stadium
Availability:
Quantity:
  • SMD P10
  • Adhaiwell
  • 8531200000

Product Description

SMD-P10-Courts-Perimeter-Business-Logos-LED-Screen


Field Court LED Perimeter Screen Display lines the perimeter of a football, basketball, or tennis court. Use Digital LED Advertising Display to replace the traditional printed sponsor poster, and instead of the unit LED cabinets to display vibrant ads with images, videos, or animations.

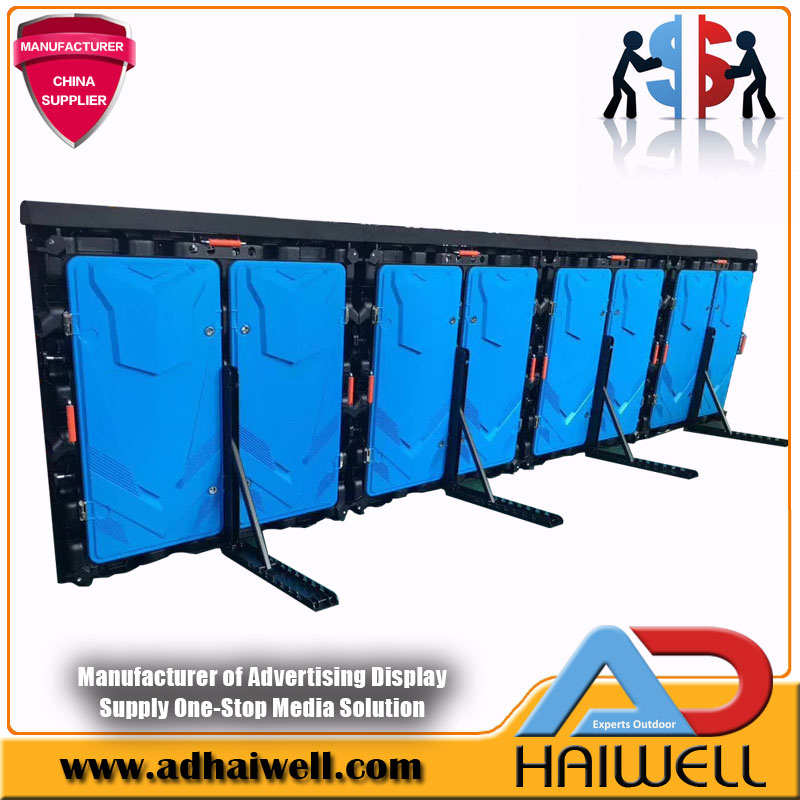

The outdoor LED perimeter display screen is made up of many units of LED cabinets with 96 cm x 96 cm connected, and the LED screen cabinets are connected by snap-type connectors. This design can be easily and quickly disassembled and maintained and is convenient for maintenance.

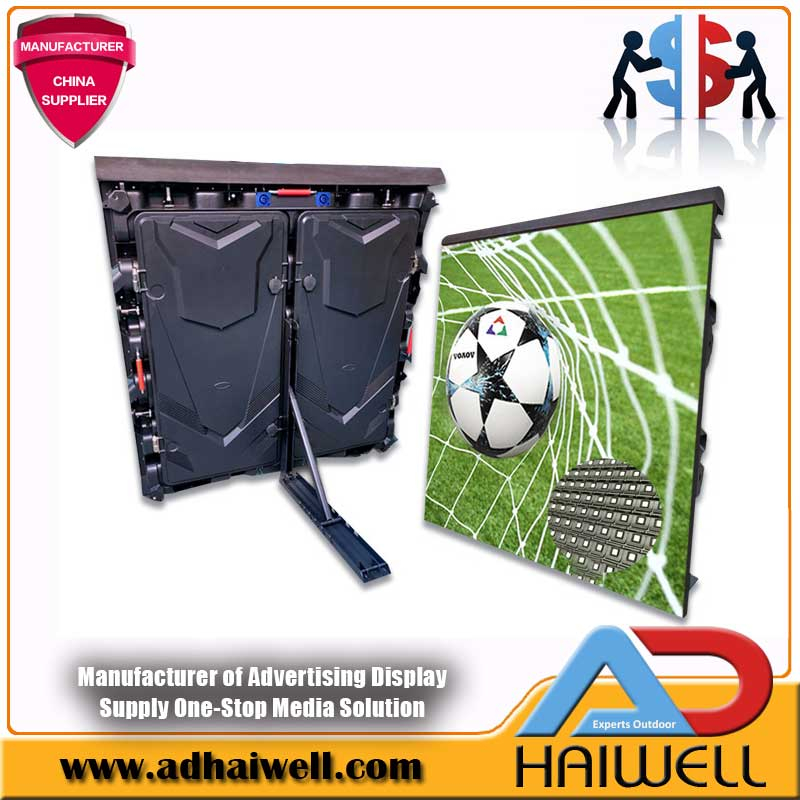

There is a separate support foot behind each LED cabinet, through which the angle between the screen and the ground can be adjusted, and the angle range is adjustable from 65° to 90° to ensure the viewing angle of the audience.


Football & Soccer Courts Perimeter LED Banner Display can be installed around the whole stadium. Perimeter LED Banner Screen can bring strong image and animation visuals.


Adhaiwell's Perimeter LED screens are often used by sports clubs and companies that own sports infrastructure to be installed in stadiums, both outdoors and indoors.


Perimeter LED screens are typically used in stadiums, sports halls, racetracks, multi-purpose sports facilities, and other professional sports applications. Sports stadium LED display includes LED scoreboard, perimeter LED banner screen, LED video display, etc.


Stadium LED display design can be for both rental applications and fixed installation. Advanced stadium software is used to manage the content of the display instantly.


The Sports Peripheral LED Screen Display is a giant banner LED display with a very wide width and a short height. The peripheral LED digital advertising board is active, and continuous advertising messages or Business Logos are displayed on the LED screens on the entire perimeter of the sports field in the stadium. The range of motion LED displays we provide for the football field is easy to install and remove. The LED screen is waterproof and can prevent any stadium environment (such as water, rain, dust) invasion. Usually, the pixel pitch of the stadium LED display is P8 or P10.


Stadium Perimeter LED Screen

&

Courts LED Banner Display

 Outdoor-Sports-Field-LED-Screen-Display


Product Features

Adhaiwell’s LED Perimeter screen display systems solution offers an outdoor rated high brightness advertising solution designed for perimeter advertising and sporting displays.


1. IP65 waterproof, anti-ultraviolet, wind resistance, earthquake resistant, making them waterproof and suitable for outdoor use, built to withstand even harsh weather conditions.


2. Base structure adjustable, ensuring better watch games from different viewing angles for solutions that meet UEFA standard compliance and higher resolution models.


3. Die-cast aluminum-led cabinet, thin and lightweight, foam removed, can use for rental stage LED screen.


4. Soft led module mask, protect the athlete's body not to hurt and the LED lamp not too broken.


5. Shipped in a modular format with 96 cm x 96cm LED cabinet, our LED Perimeter screen panels can be joined to create systems of any length and come with a control system & basic operating software.


6. Offering brightnesses of 5,500 to 6,000 nits, these modular LED screens work in even direct sunlight, making them a reliable choice for use in TV & broadcasting.




Outdoor Sports Field LED Screen Display

Sports field LED screens are very suitable for crowded places, especially for football or basketball courts. Its high-resolution images and wide viewing angles ensure the best quality pictures and videos to every corner of the stadium.

 Courts-Perimeter-Business-Logos-LED-Screen

Large Screen & Electronic SCOREBOARDS

Sponsor advertisements, live video broadcasts, important information, and Brand Logos can be shown on the large LED screen. Of course, they can also be used as a scoreboard. You can build a large screen to fit your stadium perimeter. You decide the shape and size.



LED peripheral display screen can be used to display numerous advertisements in a single game, and your sponsor can easily change its information, thereby creating a new sponsor concept.



Professional Protection

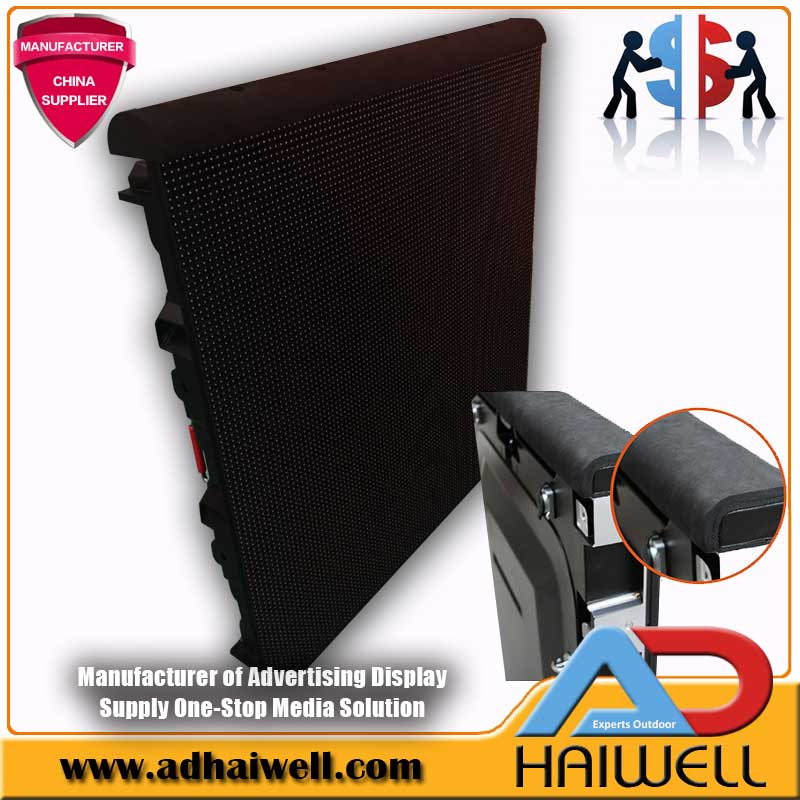

Special Eva protection cushion on the top of the LED cabinet to protect soccer players from being injured during games. Silicon rubber mask with its softness and flexibility to protect the player and balls from being injured. The stable body protects the display from any damage, even a high-speed ball or soccer ball.


Football-Stadium-Perimeter-Led-Screen-Display



Easy to Carry

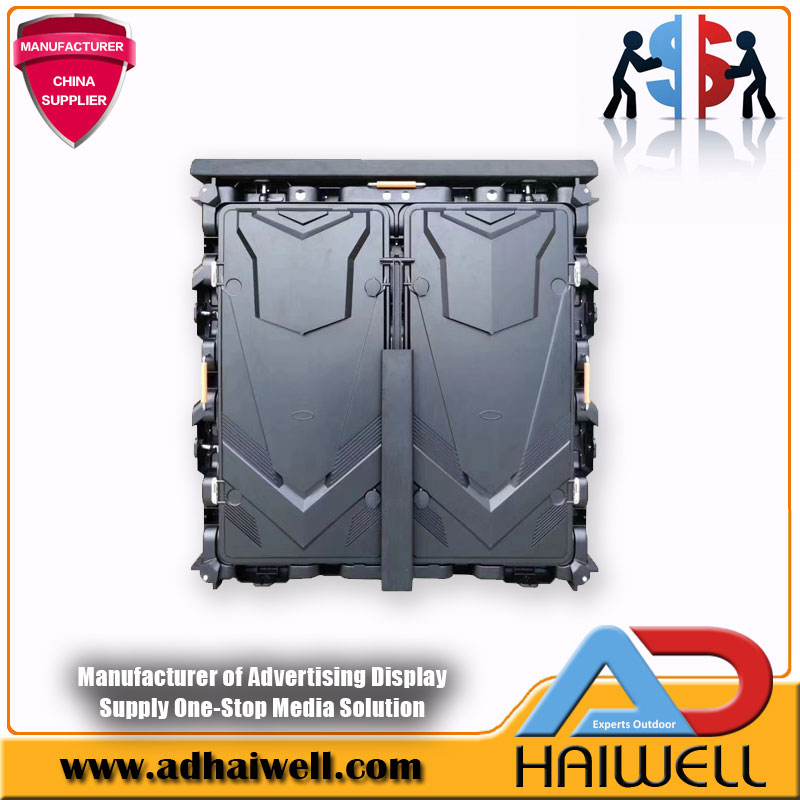

The sports field LED display screen has an integrated rear pull bracket, which is convenient for transportation and installation. Just pull the bracket on the floor and the sports field LED display screen can be supported on the ground.



Wide Field of View

The sports field LED screen has a wide viewing angle of 140°, which can be viewed by more audiences. Image quality remains seamless in all directions and distances, presenting the same high-quality output to all audiences. This makes it suitable for large gatherings.



High IP Level & Safe & Reliable

The SMD P8 or P10 outdoor sports field LED display is specially designed for waterproof, dustproof, and UV protection to ensure uninterrupted outdoor use. The high IP rating ensures high-quality output under any circumstances.

 Stadium-Scoreboards-and-LED-Video-Display-Solutions

High Brightness & High Quality

The sports field LED screen has advanced functions such as brightness above 6000cd/sqm. Adjust the brightness according to the installation area (Option).

 Stadium-LED-Banner-Display

Packing & Transfer

In order to avoid damage to the product during transportation and ensure the safety of the product, it is packaged in a Flight Case for convenient storage and transfer.


Stadium-Perimeter-LED-Display


LED Cabinet Parameters


          Pixel Pitch

10mm
          LED Package

SMD3535

          Pixel Density

10000dots/m2

          Color Configuration

1R1G1B

          Brightness

Up to 6000cd/㎡ @ white color

          Refresh Rate

Up to 1920Hz/s, could be adjusted

          Gray Scale

16.7M color (Synchronized)

          View Angle

H:140°, V:120°

          Module Size

320x160mm

          Cabinet Size

960x960mm

          Cabinet Material

Iron/Aluminum/die-casting aluminum

          Viewing Distance

8-100M

          Drive Mode

1/2 scan

          Power Supply                 AC220V/110V/50 Hz, or manual switch

          Lifespan                 100,000 hours

          Trouble Free Time                 10,000 hours

          Working Temperature                 -20°C + 65°C

          Environment Humidity                 10% ~ 95%

          Control System

Nova


Why do we use these devices for our sports stadium LED screen?


The maximum distance for the network cable is about 100m.

The control room is usually over 100m far from the court.

Therefore the optical fiber system is wanted.


Optical fiber system includes the optical fiber cable and optical fiber converter.


The transmission distance of optical fiber can reach several kilometers or even decades of kilometers with more stability.



Soccer field LED Display Special Control System


Soccer field LED Display Topology


Considering professional use, there are plenty of video controllers introduced in the market today, whether in terms of brands, models, or even working quality; the number of options is extremely wide. However, when it comes professional choose the best brand and models for portraying high-quality 1080P video graphics on the LED display for Soccer field, Novastar’s MCTRL Series are worth your investment.


MCTRL700 utilizes USB IN to connect with a PC, and serial UART to perform cascading. MCTRL700 is mainly suitable for applications in the rental and fixed installation sectors, such as the Soccer field, concerts, live broadcasting, monitoring centers, Olympic events, sports arenas, and more.


MCTRL700 is a video controller developed by NovaStar. It supports 1x DVI input, 1× HDMI input, 1× audio input, and 6 Ethernet outputs. A single unit can load 1920×1200@60Hz.


Soccer-field-LED-Display-Special-Control-System

FEATURES


  • 3 × Input connectors

    • 1×SL-DVI (IN-OUT)

    • 1×HDMI 1.3 (IN-OUT)

    • 1×AUDIO

  • 6×Gigabit Ethernet outputs

  • 1×Type-B USB control port

  • 2×UART control ports

  • Used for device cascading. Up to 20 devices can be cascaded.

  • Pixel level brightness and chroma calibration.
    Working with NovaLCT and NovaCLB, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.


Supports 3 types of inputs:


1×SL-DVI(IN-OUT)

1×HDMI 1.3(IN-OUT)

1×AUDIO

8bit video source loading capacity of 1920×1200@60Hz.

12bit video source loading capacity of 1440×900@60Hz

Supports 6x 1G network port outputs.

Supports 1× USB control port

Supports 2× UART control ports for cascading up to a maximum of 20 units.


Point to point brightness and color calibration provided by NovaLCT and NOVACLB software. This software performs brightness and color calibration on every LED lamp, reducing color discrepancies, and ensuring uniform brightness and color over the entire display, providing a higher quality image.




SPECIFICATIONS


Connector Type

Connector Name

Description

Input

DVI IN

1x SL-DVI input connector

l Resolutions up to 1920×1200@60Hz

l Custom resolutions supported

Maximum width: 3840 (3840×600@60Hz) Maximum height: 3840 (548×3840@60Hz)

l HDCP 1.4 compliant

l DOES NOT support interlaced signal input.

HDMI IN

1x HDMI 1.3 input connector

l Resolutions up to 1920×1200@60Hz

l Custom resolutions supported

Maximum width: 3840 (3840×600@60Hz) Maximum height: 3840 (548×3840@60Hz)

l HDCP1.4 compliant

l DOES NOT support interlaced signal input.

AUDIO

Audio input connector

Output

1~6

6x RJ45 Gigabit Ethernet ports

l Capacity per port up to 650,000 pixels

l Redundancy between Ethernet ports supported

HDMI OUT

1x HDMI 1.3 output connector for cascading

DVI OUT

1x SL-DVI output connector for cascading

Control

USB

Type-B USB 2.0 port to connect to PC

UART IN/OUT

Input and output ports to cascade devices. Up to 20 devices can be cascaded.

Power

AC 100V-240V~50/60Hz
